The eXtreme-ao Reordered Image Format: Declarations. More...

The eXtreme-ao Reordered Image Format: Declarations.

Author: Jared R. Males (jared.nosp@m.male.nosp@m.s@gma.nosp@m.il.c.nosp@m.om)

Definition in file xrif.h.

#include <stdlib.h>
#include <string.h>
#include <time.h>
#include <stdio.h>
#include "lz4/lz4.h"
#include "lz4/lz4hc.h"

Include dependency graph for xrif.h:

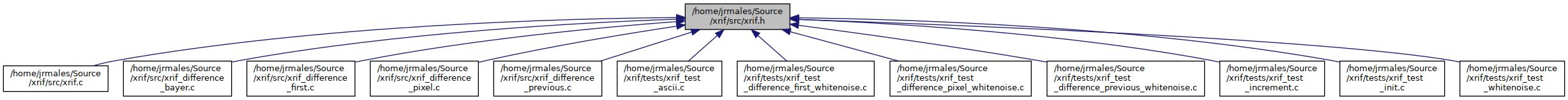

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	xrif_handle
	The xrif library configuration structure, organizing various parameters used by the functions. More...

Macros
#define	_POSIX_C_SOURCE 199309L

#define	LZ4_MEMORY_USAGE (20)

#define	XRIF_VERSION (0)

#define	XRIF_HEADER_SIZE (48)

#define	XRIF_DIFFERENCE_NONE (-1)

#define	XRIF_DIFFERENCE_DEFAULT (100)

#define	XRIF_DIFFERENCE_PREVIOUS (100)

#define	XRIF_DIFFERENCE_FIRST (200)

#define	XRIF_DIFFERENCE_PIXEL (300)

#define	XRIF_REORDER_NONE (-1)

#define	XRIF_REORDER_DEFAULT (100)

#define	XRIF_REORDER_BYTEPACK (100)

#define	XRIF_REORDER_BYTEPACK_RENIBBLE (200)

#define	XRIF_REORDER_BITPACK (300)

#define	XRIF_COMPRESS_NONE (-1)

#define	XRIF_COMPRESS_DEFAULT (100)

#define	XRIF_COMPRESS_LZ4 (100)

#define	XRIF_LZ4_ACCEL_MIN (1)

#define	XRIF_LZ4_ACCEL_MAX (65537)

#define	XRIF_NOERROR (0)
	Return code for success.

#define	XRIF_ERROR_NULLPTR (-5)
	Return code indicating that a NULL pointer was passed.

#define	XRIF_ERROR_NOT_SETUP (-10)
	Return code indicating that the handle was not setup.

#define	XRIF_ERROR_INVALID_SIZE (-20)
	Return code indicating that an invalid size was passed.

#define	XRIF_ERROR_INVALID_TYPE (-22)
	Return code indicating that an invalid type was passed.

#define	XRIF_ERROR_INSUFFICIENT_SIZE (-25)
	Return code indicating that an insufficient size was given.

#define	XRIF_ERROR_MALLOC (-30)
	Return code indicating a malloc failure.

#define	XRIF_ERROR_NOTIMPL (-100)
	Return code indicating that the requested feature is not available.

#define	XRIF_ERROR_BADARG (-110)
	Return code indicating that a bad argument was passed.

#define	XRIF_ERROR_BADHEADER (-1000)
	Return code indicating that the header is bad.

#define	XRIF_ERROR_WRONGVERSION (-1010)
	Return code indicating that a wrong version was specified.

#define	XRIF_ERROR_LIBERR (-10000)
	Return code indicating a library returned an error (e.g. LZ4). The library error code may be added to this.

#define	XRIF_ERROR_PRINT(function, msg) fprintf(stderr, "%s: %s\n", function, msg)
	Standard error report.

#define	XRIF_TYPECODE_UINT8 (1)
	8-bit unsigned integer

#define	XRIF_TYPECODE_INT8 (2)
	8-bit signed integer

#define	XRIF_TYPECODE_UINT16 (3)
	16-bit unsigned integer

#define	XRIF_TYPECODE_INT16 (4)
	16-bit signed integer

#define	XRIF_TYPECODE_UINT32 (5)
	32-bit unsigned integer

#define	XRIF_TYPECODE_INT32 (6)
	32-bit signed integer

#define	XRIF_TYPECODE_UINT64 (7)
	64-bit unsigned integer

#define	XRIF_TYPECODE_INT64 (8)
	64-bit signed integer

#define	XRIF_TYPECODE_HALF (13)
	IEEE 754 half-precision 16-bit (uses uint16_t for storage)

#define	XRIF_TYPECODE_FLOAT (9)
	IEEE 754 single-precision binary floating-point format: binary32.

#define	XRIF_TYPECODE_DOUBLE (10)
	IEEE 754 double-precision binary floating-point format: binary64.

#define	XRIF_TYPECODE_COMPLEX_FLOAT (11)
	complex float

#define	XRIF_TYPECODE_COMPLEX_DOUBLE (12)
	complex double

Typedefs
typedef uint32_t	xrif_dimension_t
	The type used for storing the width and height and depth dimensions of images.

typedef int	xrif_error_t
	The error reporting type.

typedef uint8_t	xrif_typecode_t
	The type used for storing the ImageStreamIO data type code.

typedef xrif_handle *	xrif_t
	The xrif handle pointer type. This provides the main interface to the xrif library.

Functions
xrif_error_t	xrif_new (xrif_t *handle_ptr)
	Allocate a handle and initialize it. More...

xrif_error_t	xrif_set_size (xrif_t handle, xrif_dimension_t w, xrif_dimension_t h, xrif_dimension_t d, xrif_dimension_t f, xrif_typecode_t c)
	Set the basic parameters of an xrif handle. More...

xrif_error_t	xrif_configure (xrif_t handle, int difference_method, int reorder_method, int compress_method)
	Configure the difference, reorder, and compression methods. More...

xrif_error_t	xrif_allocate (xrif_t handle)
	Allocate all memory buffers according to the configuration specified in the handle. More...

xrif_error_t	xrif_reset (xrif_t handle)
	Reset a handle, restoring it to the initialized state. De-allocates owned pointers and re-initializes. More...

xrif_error_t	xrif_delete (xrif_t handle)
	Deallocate a handle, including any memory that it owns. More...

xrif_error_t	xrif_initialize_handle (xrif_t handle)
	Initialize an xrif handle object. More...

xrif_error_t	xrif_set_difference_method (xrif_t handle, int difference_method)
	Set the difference method. More...

xrif_error_t	xrif_set_reorder_method (xrif_t handle, int reorder_method)
	Set the reorder method. More...

xrif_error_t	xrif_set_compress_method (xrif_t handle, int compress_method)
	Set the compress method. More...

xrif_error_t	xrif_set_lz4_acceleration (xrif_t handle, int32_t lz4_accel)
	Set the LZ4 acceleration parameter. More...

size_t	xrif_min_raw_size (xrif_t handle)
	Calculate the minimum size of the raw buffer. More...

size_t	xrif_min_reordered_size (xrif_t handle)
	Calculate the minimum size of the reordered buffer. More...

size_t	xrif_min_compressed_size (xrif_t handle)
	Calculate the minimum size of the compressed buffer. More...

xrif_error_t	xrif_set_raw (xrif_t handle, void *raw, size_t size)
	Set the raw data buffer to a pre-allocated pointer. More...

xrif_error_t	xrif_allocate_raw (xrif_t handle)
	Allocate the raw buffer based on the already set stream dimensions. More...

xrif_error_t	xrif_set_reordered (xrif_t handle, void *reordered, size_t size)
	Set the rordered (working) data buffer to a pre-allocated pointer. More...

xrif_error_t	xrif_allocate_reordered (xrif_t handle)
	Allocate the reordered buffer based on the already set stream dimensions. More...

xrif_error_t	xrif_set_compressed (xrif_t handle, void *reordered, size_t size)
	Set the compressed data buffer to a pre-allocated pointer. More...

xrif_error_t	xrif_allocate_compressed (xrif_t handle)
	Allocate the compressed buffer based on the already set stream dimensions. More...

xrif_dimension_t	xrif_width (xrif_t handle)
	Get the current width of the configured handle. More...

xrif_dimension_t	xrif_height (xrif_t handle)
	Get the current height of the configured handle. More...

xrif_dimension_t	xrif_depth (xrif_t handle)
	Get the current depth of the configured handle. More...

xrif_dimension_t	xrif_frames (xrif_t handle)
	Get the current number of frames of the configured handle. More...

xrif_error_t	xrif_write_header (char *header, xrif_t handle)
	Populate a header buffer with the xrif protocol details. More...

xrif_error_t	xrif_read_header (xrif_t handle, uint32_t header_size, char header)
	Configure an xrif handle by reading a xrif protocol header. More...

xrif_error_t	xrif_encode (xrif_t handle)
	Encode data using the xrif format. More...

xrif_error_t	xrif_decode (xrif_t handle)
	Decode data from the xrif format. More...

xrif_error_t	xrif_difference (xrif_t handle)
	Difference the image(s) More...

xrif_error_t	xrif_undifference (xrif_t handle)
	Undifference the image(s) More...

xrif_error_t	xrif_difference_previous (xrif_t handle)
	Difference the images using the previous image as a reference. More...

xrif_error_t	xrif_difference_first (xrif_t handle)
	Difference the images using the first image as a reference. More...

xrif_error_t	xrif_difference_pixel (xrif_t handle)
	Difference the images using the previous pixel as a reference. More...

xrif_error_t	xrif_undifference_previous (xrif_t handle)
	Undifference the images using the previous image as a reference. More...

xrif_error_t	xrif_undifference_first (xrif_t handle)
	Undifference the images using the first image as a reference. More...

xrif_error_t	xrif_undifference_pixel (xrif_t handle)
	Undifference the images using the previous pixel as a reference. More...

xrif_error_t	xrif_reorder (xrif_t handle)
	Reorder the data using the method specified by `reorder_method` More...

xrif_error_t	xrif_unreorder (xrif_t handle)
	Un-reorder the data using the method specified by `reorder_method` More...

xrif_error_t	xrif_reorder_none (xrif_t handle)
	Perform no re-ordering, simply copy raw to reordered. More...

xrif_error_t	xrif_reorder_bytepack (xrif_t handle)
	Dispatch bytepack reodering based on type. More...

xrif_error_t	xrif_reorder_bytepack_sint16 (xrif_t handle)
	Perform bytepack reodering for signed 16 bit ints. More...

xrif_error_t	xrif_reorder_bytepack_renibble (xrif_t handle)

xrif_error_t	xrif_reorder_bytepack_renibble_sint16 (xrif_t handle)

xrif_error_t	xrif_reorder_bitpack (xrif_t handle)

xrif_error_t	xrif_reorder_bitpack_sint16 (xrif_t handle)

xrif_error_t	xrif_unreorder_none (xrif_t handle)
	Perform no un-re-ordering, simply copy reordered to raw. More...

xrif_error_t	xrif_unreorder_bytepack (xrif_t handle)
	Dispatch bytepack unreodering based on type. More...

xrif_error_t	xrif_unreorder_bytepack_sint16 (xrif_t handle)
	Perform bytepack unreodering for signed 16 bit ints. More...

xrif_error_t	xrif_unreorder_bytepack_renibble (xrif_t handle)

xrif_error_t	xrif_unreorder_bitpack (xrif_t handle)

xrif_error_t	xrif_compress (xrif_t handle)

xrif_error_t	xrif_decompress (xrif_t handle)

xrif_error_t	xrif_compress_none (xrif_t handle)

xrif_error_t	xrif_decompress_none (xrif_t handle)

xrif_error_t	xrif_compress_lz4 (xrif_t handle)

xrif_error_t	xrif_decompress_lz4 (xrif_t handle)

double	xrif_compression_ratio (xrif_t handle)
	Calculate the compression ratio. More...

double	xrif_encode_time (xrif_t handle)
	Calculate the time in seconds taken to encode the data. More...

double	xrif_encode_rate (xrif_t handle)
	Calculate the encode rate in bytes/sec. More...

double	xrif_difference_time (xrif_t handle)
	Calculate the time in seconds taken to difference the data. More...

double	xrif_difference_rate (xrif_t handle)
	Calculate the differencing rate in bytes/sec. More...

double	xrif_reorder_time (xrif_t handle)
	Calculate the time in seconds taken to reorder the data. More...

double	xrif_reorder_rate (xrif_t handle)
	Calculate the reordering rate in bytes/sec. More...

double	xrif_compress_time (xrif_t handle)
	Calculate the time in seconds taken to compress the differenced and reordered data. More...

double	xrif_compress_rate (xrif_t handle)
	Calculate the compression rate in bytes/sec. More...

double	xrif_decode_time (xrif_t handle)
	Calculate the time in seconds taken to decode the data. More...

double	xrif_decode_rate (xrif_t handle)
	Calculate the decode rate in bytes/sec. More...

double	xrif_undifference_time (xrif_t handle)
	Calculate the time in seconds taken to undifference the data. More...

double	xrif_undifference_rate (xrif_t handle)
	Calculate the undifferencing rate in bytes/sec. More...

double	xrif_unreorder_time (xrif_t handle)
	Calculate the time in seconds taken to unreorder the data. More...

double	xrif_unreorder_rate (xrif_t handle)
	Calculate the unreordering rate in bytes/sec. More...

double	xrif_decompress_time (xrif_t handle)
	Calculate the time in seconds taken to decompress the differenced and reordered data. More...

double	xrif_decompress_rate (xrif_t handle)
	Calculate the decompression rate in bytes/sec. More...

size_t	xrif_typesize (xrif_typecode_t type_code)
	Return the size of the type specified by the code. More...

double	xrif_ts_difference (struct timespec ts1, struct timespec ts0)
	Calculate the difference between two timespecs. More...

const char *	xrif_difference_method_string (int diff_method)
	Get a string describing the difference method. More...

const char *	xrif_reorder_method_string (int reorder_method)
	Get a string describing the reordering method. More...

const char *	xrif_compress_method_string (int compress_method)
	Get a string describing the compression method. More...

Function Documentation

◆ xrif_reorder_bitpack()

xrif_error_t xrif_reorder_bitpack ( xrif_t handle )

Todo:: xrif_reorder_bitpack needs a size check

Definition at line 1517 of file xrif.c.

References xrif_handle::difference_method.
